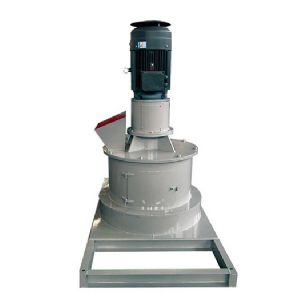

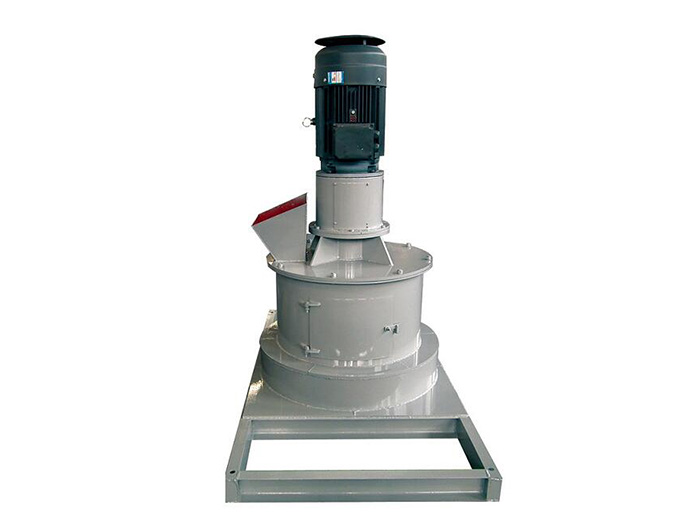

HLF60-HLF100 Vertical Pulverizer

久久综合网丁香五月天,日本在线视频一二三区,麻豆激情视频在线播放,免费欧美大片久久久久

You are now entering the official website of Shandong Huayi Heavy Industry Co., Ltd.！

信息詳情


■ USE

◎ It is used for pulverizing preparative materials and back-materials, as well as pulverizing common-calcium phosphate fertilizer with＜14% moisture and ＜5% free acid content.

■ Profile of Equipment

◎ This equipment is designed according to production process characters of compound fertilizer, It has the characteristics of compact structure, stable run, less materials cohesion, convenient cleaning etc..

■ Main Technical parameters:

Type		HLF60	HLF80	HLF100
Size(cylinder Dia.×cylinder Length) (mm)		Φ600×610	Φ800×610	Φ1000×610
Dia. of Rotor (mm)		Φ590	Φ790	Φ990
Capacity (t/h)		2-3	3-4	4-6
Feeding Granulatity (mm)		＜50	＜60	＜80
Discharging Granularity (mm)		≤1mm占70%-90%
Motor	Type	Y160L-4	Y180L-4	Y225M-6
Motor	Power(kw)	15	22	30
Dimensions (L.×W.×H.) (mm)		2000 ×660 ×1100	2000 ×950 ×1600	2000 ×1100 ×2130
