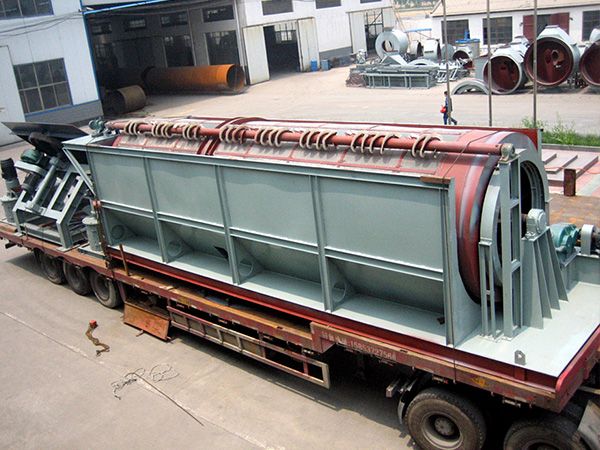

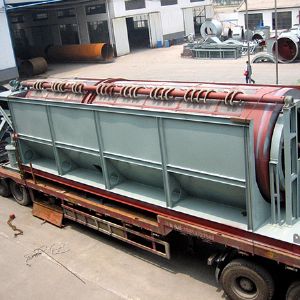

HGS10-HGS22 Rotary Grading Sieve

久久综合网丁香五月天,日本在线视频一二三区,麻豆激情视频在线播放,免费欧美大片久久久久

You are now entering the official website of Shandong Huayi Heavy Industry Co., Ltd.！

English | Chinese

信息詳情

■ USE

◎ It is used for grading and sieving of compound fertilizer.

■ Profile of Equipment

◎ This equipment is fitted with different meshes of sieve meshworks from feeding side to discharging side, which can achieve grading and sieving of compound fertilizer, This equipment has the characteristics of large capacity, good sieving effects, convenient operation etc.. This equipment It can be fitted with the following two types of sieve cylinders: round type and conical type.

■ Main Technical parameters:

Type	HGS10	HGS12	HGS15	HGS18	HGS20	HGS22	HGS24
Size(cylinder Dia.×cylinder Length) (m)	Φ1.0×4	Φ1.2×5	Φ1.5×6	Φ1.8×6	Φ2.0×6	Φ2.2×8	Φ2.4×8
Rotary speed (r/min)	15.4	15.4	16	14.5	15	10	10
Capacity (t/h)	3-5	5-8	8-12	12-15	15-20	20-28	30-45
Power of motor(kw)	3	4	7.5	11	15	15	22
Dimension (L.×W.×H.) (mm)	6200 ×1780 ×2100	6500 ×1950 ×2200	7705 ×2280 ×1050	7900 ×2580 ×4160	8200 ×3200 ×4800	10375 ×2600 ×2800	10375 ×2800 ×3200
